Sunday, 30 October 2011

Experimental Arachni on Cygwin Windows

Arachni is a fire-and-forget or point-and-shoot web application vulnerability scanner. This procedure explains how to get the current experimental branch of Arachni up and running under Cygwin. Check back often, I try to get this post updated when new versions arrive. Bugs are usually fixed quite rapidly, so hopefully one day we will have a one-line installation procedure.

A few earlier blog-posts of mine describe how to get the current release version of Arachni (v.0.3) running on Windows using MinGW and Cygwin. Both installations still have their problems unfortunately.

Some of the problems are already fixed in the experimental branch, so here is the procedure to install that version and help debugging (but in reality, it appears to be working fine!).

Notice

If you get weird errors (“fork: child xxx - died waiting”) during the compilation of any of the tools in the next steps, please do this:

In your Cygwin shell:

$ find /usr/ -iname '*.so' > /tmp/local.so.lst



Quit all Cygwin shells. Use Windows to browse to C:\cygwin\bin. Right click ash.exe, and choose ‘run as administrator’. Enter in ash:

$ /bin/rebaseall
$ /bin/rebaseall -T /tmp/local.so.lst

Exit ash.



Step 1


Install or upgrade Cygwin by running setup.exe. Apart from the standard packages, include the following:



  • Database: libsqlite3-devel, libsql3_0
  • Devel: doxygen, libffi4, gcc4, gcc4-core, gcc4-g++, git, libxml2-devel, make, openssl-devel, pkg-config
  • Editors: nano
  • Libs: libxslt, libxslt-devel, libopenssl098, tcltk, libxml2, libmpfr4
  • Net: libcurl-devel, libcurl4

Accept the installation of packages that are required to satisfy dependencies. Note that some of your other tools might not work with these libraries or upgrades. In any case, an upgrade of Cygwin usually results in recompiling any tools that you compiled earlier.


Step 2


Some additional libraries are needed (for the compilation of Ruby in the next step) and must be compiled by hand.

First we need to install libffi. Execute the following commands in your Cygwin shell:

$ cd
$ git clone git://github.com/atgreen/libffi.git
$ cd libffi
$ ./configure --prefix=/usr
$ make
$ make install-libLTLIBRARIES



Next is libyaml. Download the latest stable version of libyaml (currently 0.1.4) and move it to your Cygwin home folder (probably C:\cygwin\home\your_windows_id). Execute the following:
$ cd
$ tar -xvf yaml-0.1.4.tar.gz
$ cd yaml-0.1.4
$ ./configure --prefix=/usr
$ make
$ make install




Step 3


A major pain (compiling is very slow) is that the current Cygwin (1.7.9-1) does not have the required Ruby 1.9.x nor the required packages/headers. Download the source of Ruby 1.9.3x (currently ruby-1.9.3-p0.tar.gz) and move it to your Cygwin home folder.

Execute the following commands in the Cygwin shell:
$ cd
$ tar -xvf ruby-1.9.3-p0.tar.gz
$ cd ruby-1.9.3-p0
$ ./configure --prefix=/usr
$ make
$ make install



Step 4


Start the Cygwin shell again and:

$ gem update --system
$ gem install rake-compiler

$ cd
$ git clone git://github.com/djberg96/sys-proctable.git
$ cd sys-proctable
$ rake install
$ gem build sys-proctable.gemspec
$ gem install sys-proctable-0.9.1-x86-cygwin.gem



Step 5


Finally we can install Arachni (and the source) by executing the following commands in Cygwin:

$ cd
$ git clone git://github.com/eventmachine/eventmachine.git
$ cd eventmachine
$ gem build eventmachine.gemspec
$ gem install eventmachine-1.0.0.beta.4.gem

$ cd
$ git clone git://github.com/Arachni/arachni-rpc.git
$ cd arachni-rpc
$ gem build arachni-rpc.gemspec
$ gem install arachni-rpc-0.1.gem

$ cd
$ git clone git://github.com/Arachni/arachni-rpc-em.git
$ cd arachni-rpc-em
$ gem build arachni-rpc-em.gemspec
$ gem install arachni-rpc-em-0.1.gem

$ cd
$ git clone git://github.com/Zapotek/arachni.git
$ cd arachni
$ git checkout experimental
$ rake install



Pfioew! This should do it. You can now start working with Arachni!


Note that arachni_web_autostart does not work in Cygwin, you have to start Arachni as follows:

$ arachni_rpcd &
$ arachni_web



After that, browse to http://localhost:4567 and have some fun!

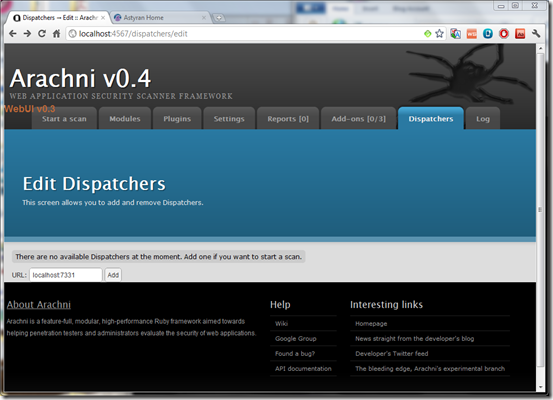

arachni04

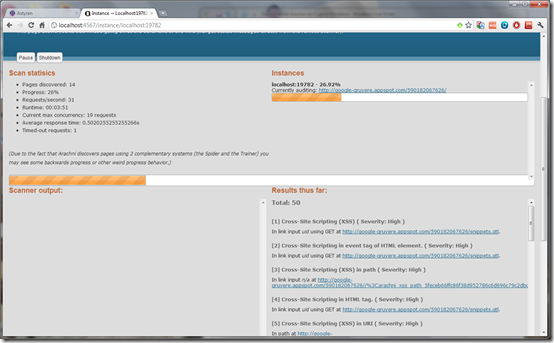

arachni_gruyere


History


2011/12/21 fixed typo
2011/12/14 minor fixes, update Ruby, added Cygwin requirement pkg-config
2011/11/20 updated to include arachni-rpc-em
2011/11/15 fixed some typos
2011/10/31 filename problems already fixed in current experimental branch
2011/10/30 New procedure based on experiences with MinGW
